VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System
VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

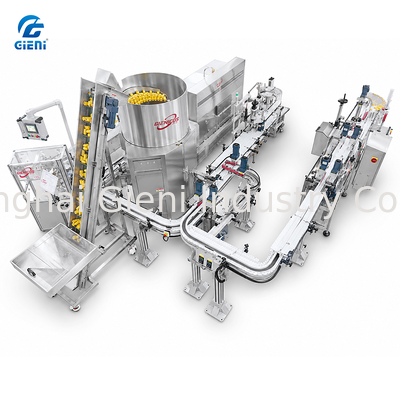

Image Grand :  VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

Détails sur le produit:
Lieu d'origine: Shanghai, Chine
Nom de marque: Gieni
Certification: CE, ISO 9001
Numéro de modèle: VS016-D
Conditions de paiement et expédition:
Quantité de commande min: 1 ensemble
Prix: USD 30000-50000 / Set
Détails d'emballage: Caisse en bois renforcée de qualité export avec protection anti-vibration
Délai de livraison: 35-50 jours ouvrables
Conditions de paiement: T/T, LC, Western Union
Capacité d'approvisionnement: 15 séries par mois

VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

description de
Type de machine: Ligne de production automatique de rouge à lèvres à deux stations Système de contrôle: API avec double IHM indépendante
Vitesse de production: 40-60 pièces/min par station Stations indépendantes: 2 (Formule séparée par station)
Tension: 3P 380V / 1P 220V Pouvoir: 16 kW
Pression atmosphérique: 0,5-0,8 MPa Matériau du corps: Acier inoxydable 304
matériel de contact: Acier inoxydable 316L Fonctions: Chargement de tubes, remplissage, fusion, congélation, bouchage, pressage, séparation
Langue: Chinois/anglais Stockage des recettes: 20 groupes (10 par station)
Mettre en évidence:

Twin Formula Filling System

,

Simultaneous Two-Color Production

,

Dual Independent Filling Stations

VS016-D Dual-Station Automatic Lipstick Production Line

The VS016-D features two fully independent production stations operating simultaneously on a single line, enabling manufacturers to produce two different colors, formulas, or SKUs at the same time. Each station has its own filling parameters, temperature controls, and recipe storage, effectively doubling production flexibility without doubling floor space.

Key Features

  • Simultaneous Dual Production: Run two completely different lipstick formulations (colors, finishes, formulations) on the same line concurrently.
  • Independent Parameter Control: Each station has its own servo filling axis with independent stroke, speed, suck-back, and temperature settings.
  • 20-Group Recipe Storage: 10 recipe groups per station for a total of 20 storable production parameter sets.
  • Shared Infrastructure: Tube loading, freezing, capping, and separation systems are shared, reducing cost and footprint compared to two separate lines.
  • Flexible Operation Modes: Run both stations simultaneously or operate a single station while the other is being cleaned or reconfigured.
  • Anti-Cross-Contamination: Physically separated filling paths with dedicated material hoppers and independent cleaning circuits.

Technical Specifications

ParameterSpecification
ModelVS016-D
Speed40-60 pcs/min per station
Power16 KW
Voltage3P 380V / 1P 220V
Air Pressure0.5-0.8 MPa
